ELECTRIC TRIM SYSTEMS


Ray Allen trim systems were designed specifically for experimental aircraft. Ray Allen servos are small enough to fit in individual control surfaces or can be used with lightweight springs acting directly on the control system. Ray Allen trim systems also come with RS2 rocker switches and RP3 LED indicators. All Ray Allen indicators operate off of feedback sensors located inside the servo. These feedback sensors are purposefully isolated from the power supply to the servo motor to guard against possible electronic failure. Ray Allen trim systems also come with a RC8-7 clevis/pushrod kit.

Ray Allen has the following trim systems available, differentiated only by servo travel length.
The
T2-7A Trim System has .7 inch (17 mm) travel $295.
The
T2-10A Trim System has 1.0 inch (26 mm) travel $295.
The
T3-12A Trim System has 1.2 inch (31 mm) travel $315.

In addition, we also have available the
T4-5 Trim System which has .5 inch (13 mm) travel for $279. NOTE: This servo does not have a compatible indicator.

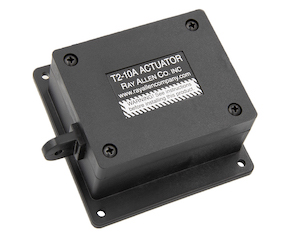

Components of a sample T2-10A Trim System





Components of a sample T4-5 Trim System
