B6 Actuator Specifications

B6 SERIES MINIATURE LINEAR ACTUATORS

The B6 actuator is a small, powerful 12-14 Volt DC actuator featuring internal travel limiting switches. When activated, the actuator will continue to run until the power is turned off or until it automatically shuts off at the end of its travel. It can also be stopped in any position by switching off the power. Since the thrust is generated by means of a jackscrew, the output shaft will lock in any position when the power is off. Voltage polarity determines the direction of travel.

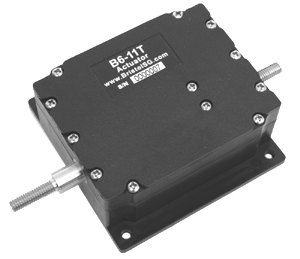

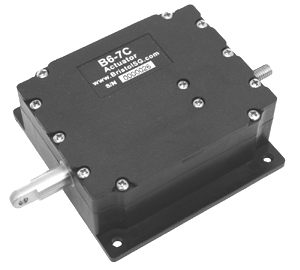

The B6 actuator shares the same footprint as our T2 / T3 Servo. The B6-7C and B6-11C model actuators have a brass output shaft designed to work with our C2 series clevis. The B6-7T and B6-11T model actuators have a brass, 10/32 threaded stud output shaft. Examples are shown below:

**B6 Specifications**
MODEL	B6-7C	B6-7T	B6-11C	B6-11T
Operating Voltage	12-14 VDC	12-14 VDC	12-14 VDC	12-14 VDC
Travel inch (mm)	.7 (18)	.7 (18)	1.1 (28)	1.1 (28)
Travel Time (@13.5 VDC)	12 seconds	12 seconds	19 seconds	19 seconds
Weight ounce (g)	5.2 (147)	5.2 (147)	5.2 (147)	5.2 (147)
MAX Operating thrust lbs (kg)	50 (23)	50 (23)	50 (23)	50 (23)
Stall thrust @12VDC lbs (kg)	130 (59)	130 (59)	130 (59)	130 (59)
Maximum Static load lbs (kg)	500 (227)	500 (227)	500 (227)	500 (227)
No Load Current	100-200 mA	100-200 mA	100-200 mA	100-200 mA
MAX Stall Current	900 mA	900 mA	900 mA	900 mA

B6 actuator 3 view drawings and wire schematic (.pdf files)

B6-7C / 11C
3 view drawings
and wire schematic

B6-7T / 11T
3 view drawings
and wire schematic
